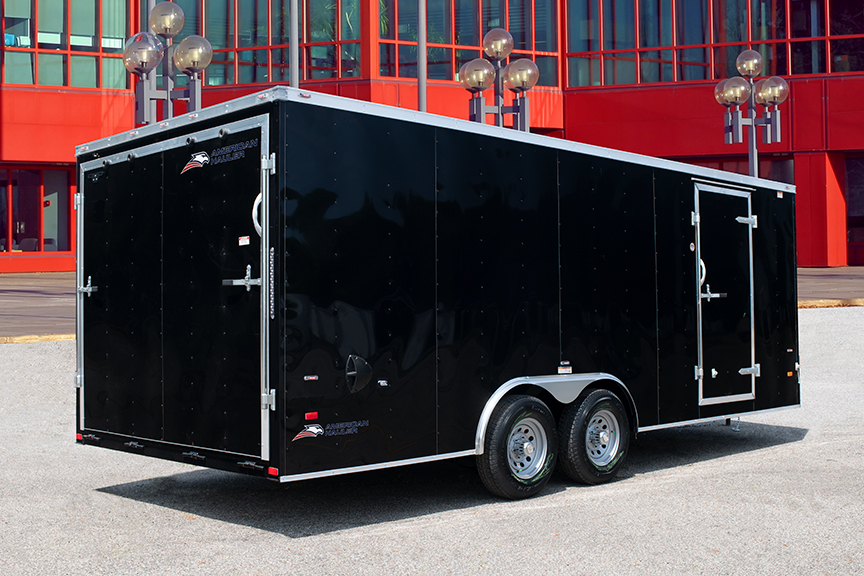

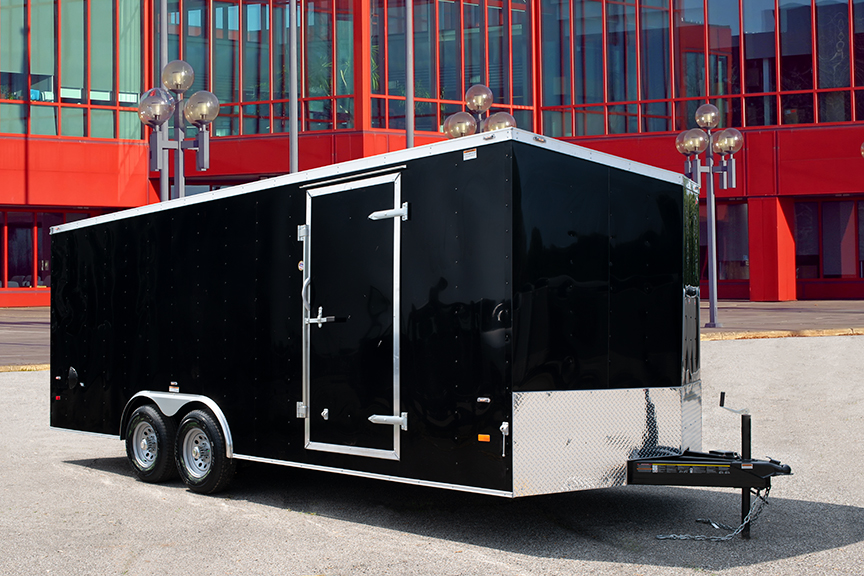

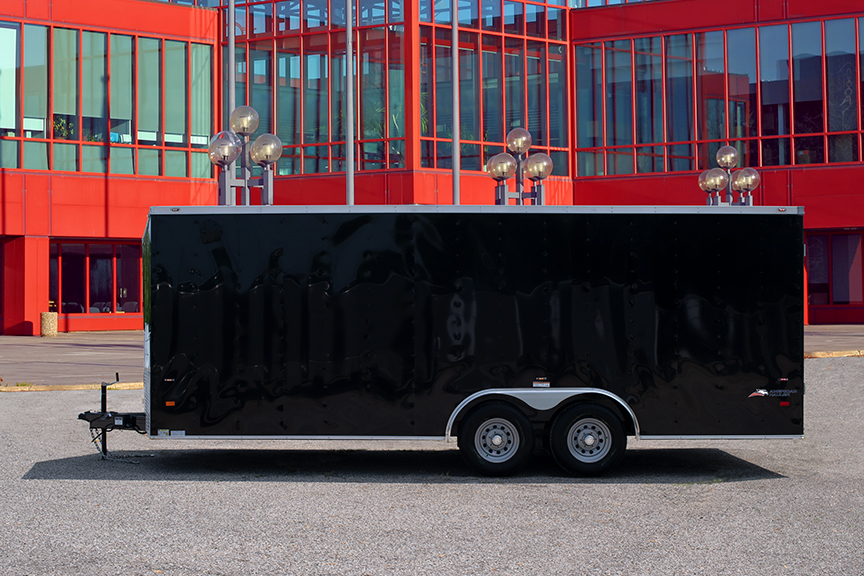

Arrow 8.5' Wide

SMART FROM THE START!
The American Hauler ARROW 8.5’ WIDE is a smart move from the get-go. Its functional design provides all the fundamental necessities to tackle a laundry list of “to-do’s.” The ARROW 8.5’ WIDE is perfect for those on a budget, but not willing to sacrifice on dependability. The ARROW 8.5’ WIDE is designed for maximum value and cargo-carrying versatility. Be sure to add the Deluxe Package with 3/8” interior sidewalls, .030 colored exterior, and floor mounted D-Ring to get even more value for your investment. A smart choice for sure.

Standard Features

Flow-Thru Sidewall Vents

Flow-Thru Sidewall Vents

LED Clearance & Tail Lights

LED Clearance & Tail Lights

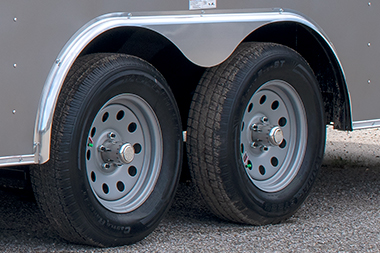

15" Radial Tires with Silver Mod Wheels (Tandem Axle)

15
  • 15" Radial Tires with Silver Mod Wheels
  • 1-Piece Seamless Aluminum Roof
  • 3/4" PlexCore Interior Floor
  • Chassis Z-Tech Undercoated

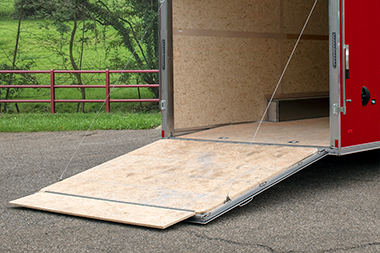

  • Ramp Door with Spring Assist - 8.5'W
  • 16" V-Nose
  • Flat Roof
  • Lauan Interior Sidewalls
  • 1-Year Limited Warranty
  • Painted Frame
  • White .024 Aluminum Exterior (With Screws)
  • 12v LED Dome Light (1) with Self Switch
  • Spring Axle with Electric Brake 4" Drop
  • 2-5/16" Coupler
  • 16" Starbright Stoneguard
  • 7-Way 12V Trailer Connector
  • 16" OC Walls
  • 24" OC Roof Bows
  • 24" OC Crossmembers
  • Smooth Aluminum Fenderettes
  • Electric Brakes with Breakaway Kit (Tandem Axle Models)
  • 32" Side Entry Door with Bar Lock
  • Safety Chains
  • 500 lb. Surface Wall Mounted Rope Rings (4)
  • E-Z Lube Hubs

Standard Features, Specifications and Available Options subject to change without notice.

Specifications
Model Number
AR8516TA2 AR8520TA2 AR8524TA3
Body Length 17' 10" 21' 10" 25' 10"
Body Width 8' 4" 8' 4" 8' 4"
Overall Length 19' 6" 23' 6"  27' 6"
Overall Width 8' 6"  8' 6"  8' 6"
Overall Height 8' 5"  8' 5"  8' 5"
Interior Length 17' 6"  21' 6"  25' 2"
Interior Width 8' 0"  8' 0"  8' 0"
Interior Height 6' 6"  6' 6"  6' 6"
Width Between Wheel Boxes 83" 83" 83"
Axle Type Spring w/ 4" Drop Spring w/ 4" Drop Spring w/ 4" Drop
Axle Quantity Tandem Tandem Tandem
Brakes Electric Drum (both axles) Electric Drum (both axles) Electric Drum (both axles)
Side Door Bar Lock  Bar Lock  Bar Lock
Side Door Width 32"  32"  32"
Rear Doors Ramp  Ramp  Ramp
Rear Door Width 94" 94" 94"
Rear Door Height 72" 72" 72"
Hitch Weight (% of Curb Weight) 10% - 15% 10% - 15% 10% - 15%
Hitch Height 20"  20"  20"
Ball Size 2-5/16"  2-5/16"  2-5/16"
Platform Height 19"  19"  19"
GVWR 7,000 lbs  7,000 lbs  9,990 lbs
Curb Weight 2,800 lbs  3,100 lbs  3,605 lbs
Payload Capacity 4,200 lbs  3,900 lbs  6,385 lbs
Brakes Electric Electric Electric
Tires ST205/75R15/C  ST205/75R15/C ST225/75R15/D
Wheels Silver Steel Mod Silver Steel Mod Silver Steel Mod
Frame 2" x 6" Tube 2" x 6" Tube 2" x 6" Tube
Floor 3/4" PlexCore Flooring 3/4" PlexCore Flooring 3/4" PlexCore Flooring
Side Walls Lauan Lauan Lauan
Additional Options

Non-Powered Roof Vent

E-Track Sidewall

E-Track in Decking

Double Rear Doors
