JUST YOUR SPEED

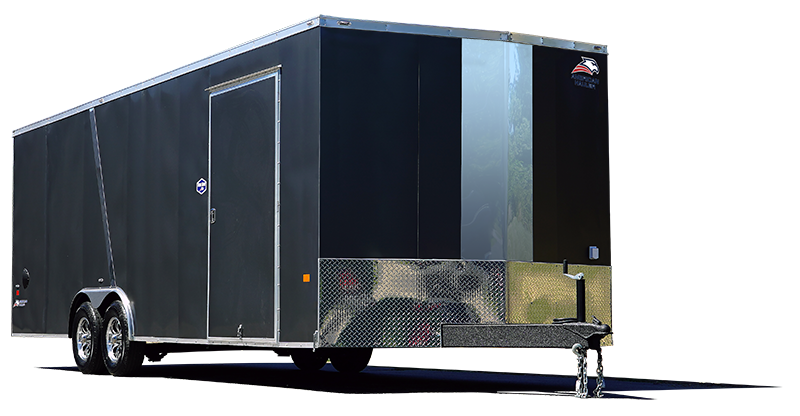

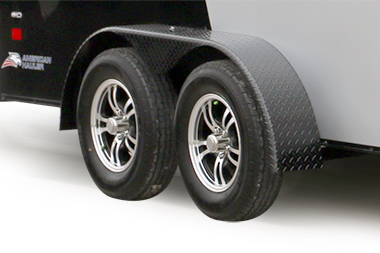

American Hauler is excited to announce the newest addition to our race trailer model lineup — the MACH. The MACH is a “pre-packaged” trailer with all the bells & whistles found on every racer’s trailer wish list. The MACH delivers an impressive level of standard equipment including Aluminum Jaguar Wheels, 48” Side Entry Door, and a fully furnished interior with Rubber Coin Floor, Workbench, and Overhead Cabinets. The competition is going to have a hard time catching up with the MACH!
Standard Features, Specifications and Available Options subject to change without notice.
Gallery
| Model Number | NH8520TA3 | NH8524TA3 |
| Body Length | 22'0" | 26'0" |
| Body Width | 8'4" | 8'4" |
| Overall Length | 25'0" | 29'0" |
| Overall Width | 8'6" | 8'6" |
| Overall Height | 9'2" | 9'2" |
| Interior Length | 21'6" | 25'6" |
| Interior Width | 8'1" | 8'1" |
| Interior Height | 7'0" | 7'0" |
| Side Door | 48" x 78" | 48" x 78" |
| Ramp Door | 94" x 80" | 94" x 80" |
| Width Between Wheel Boxes | 83" | 83" |
| Hitch Weight (% of Curb Weight) | 10%-15% | 10%-15% |
| Hitch Height | 21" | 21" |
| Ball Size | 2-5/16" | 2-5/16" |
| Platform Height | 18" | 18" |
| GVWR | 9,990 lbs | 9,990 lbs |
| Curb Weight | 3,650 lbs. | 4,480 lbs. |
| Payload Capacity | 6,340 lbs. | 5,510 lbs. |
| Brakes | Electric | Electric |
| Tires | ST225/75R15/D | ST225/75R15/D |
| Wheels | 6-Bolt | 6-Bolt |
| Main Rails | 2" x 6" | 2" x 6" |

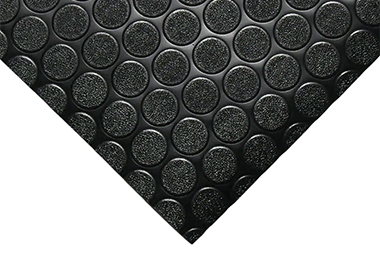

| Floor | 3/4" PlexCore with Black Coin Rubber Overlay | 3/4" PlexCore with Black Coin Rubber Overlay |
| Side Walls | 9mm White Vinyl | 9mm White Vinyl |
Specifications subject to change without notice.
