Night Hawk

RUGGED, CAPABLE, AND READY FOR ADVENTURE!
The spirited NIGHT HAWK is as comfortable on the job-site, and it is on the campsite. Built tough from the ground up, the NIGHT HAWK isn’t afraid to get a little mud on its tires. Solid engineering delivers unmatched reliability. No short-cuts allowed. Striking good looks are achieved with its aggressive sloped v-nose and smooth, screwless exterior. If you’re looking for it all — brawn & beauty — the NIGHT HAWK is your go-to trailer.

Standard Features

1-Piece Seamless Aluminum Roof

1-Piece Seamless Aluminum Roof

36" Flush Lock Side Entry Door

36

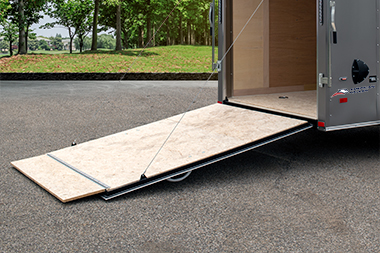

Rear Ramp Door With Spring Assist

Rear Ramp Door With Spring Assist
  • Spring Axle with E-Z Lube® Hubs

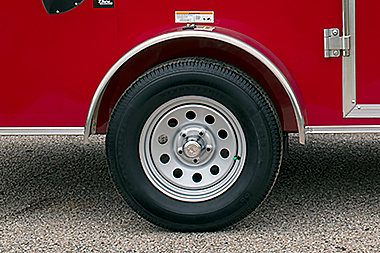

  • 15" Radial Tires with Silver Mod Wheels
  • Smooth Aluminum Radius Fenders
  • 24" ATP Stoneguard
  • .030 Aluminum Bonded Screwless Exterior
  • LED Clearance & Tail Lights

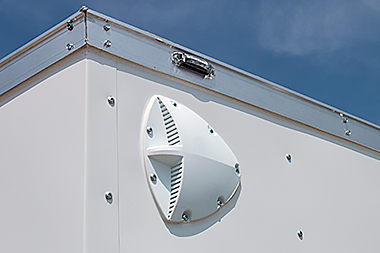

  • Flow-Thru Sidewall Vents
  • 16" Ramp Extension

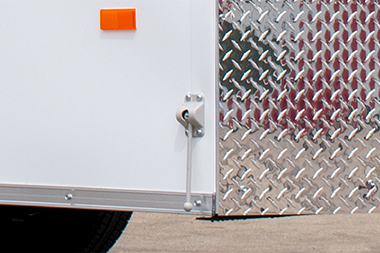

  • Door Holds Backs (Side Entry Door & Double Rear Doors)
  • Double Sealed Side Entry Doors
  • 12V LED Dome Lights (2) with Wall Switch
  • 3/4" PlexCore Interior Floor
  • 3/8" PlexCore Sidewalls
  • Tube Main Rails
  • Chassis Z-Tech Undercoated
  • Armaguard on A-Frame and Exposed Steel
  • 16" OC Crossmembers, Tube Wall Posts and Tube Roof Bows
  • 3-Year Limited Warranty

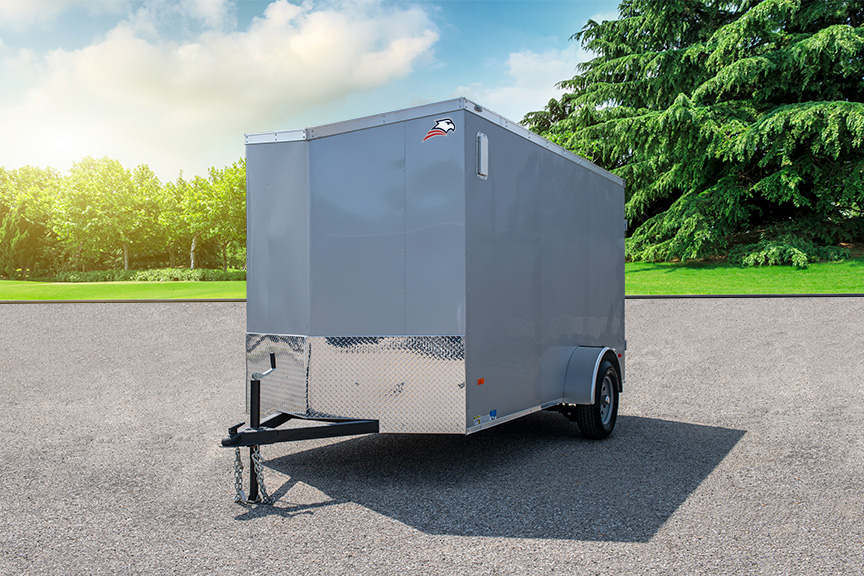

  • Tapered V-Nose / Flat Roof
  • (4) 5,000# Floor D-Rings
  • Electric Brakes with Breakaway Kit (Tandem Axle Models)

Standard Features, Specifications and Available Options subject to change without notice.

Specifications
Model Number NH58SA NH610SA NH612SA NH714TA2 NH716TA2
Overall Length 11' 6" 14' 0" 16' 0" 17' 8"  18' 8"
Overall Width 6' 8" 7' 8" 7' 8" 8' 6" 8' 6"
Overall Height 7' 2" 8' 2" 8' 2" 8' 3" 8' 3"
Interior Length 9' 1" 11' 3" 13' 3" 15' 3"  17' 3"
Interior Width 4' 8" 5' 8" 5' 8" 6' 8" 6' 8"
Interior Height 5' 6" 6' 6" 6' 6" 6' 6" 6' 6"
Side Door N/A  Standard Standard Standard  Standard
Side Door Width N/A 36" 36" 36" 36"
Rear Doors  Single Swing  Ramp Ramp Ramp  Ramp
Rear Door Width 54" 66" 66" 78" 78"
Rear Door Height 60" 72" 72" 72" 72"
Hitch Weight (% of Curb Weight) 10% to 15% 10% to 15% 10% to 15% 10% to 15% 10% to 15%
Hitch Height  16"  16" 16" 17"  17"
Ball Size  2"  2" 2" 2-5/16"  2-5/16"
Platform Height  18"  18" 18" 19"  19"
Axle Type Spring Spring Spring Spring Spring
Axle Quantity Single Single Single Tandem Tandem
GVWR 2,980 lbs  2,980 lbs 2,980 lbs 7,000 lbs  7,000 lbs
Curb Weight  935 lbs  1,195 lbs 1,325 lbs 2,125 lbs  2,275 lbs
Payload Capacity  2,045 lbs  1,785 lbs 1,655 lbs 4,875 lbs  4,725 lbs
Brakes  Optional  Optional Optional Electric  Electric
Tires  ST205/75R15/C  ST205/75R15/C ST205/75R15/C ST205/75R15/C  ST205/75R15/C
Wheels  5 Bolt  5 Bolt 5 Bolt 5 Bolt  5 Bolt
Frame  2" x 3" Tube  2" x 3" Tube 2" x 3" Tube 2" x 4" Tube  2" x 4" Tube
Floor  3/4" PlexCore 3/4" PlexCore 3/4" PlexCore 3/4" PlexCore 3/4" PlexCore
Side Walls  3/8" PlexCore 3/8" PlexCore 3/8" PlexCore 3/8" PlexCore 3/8" PlexCore
Additional Options

Removable Wheel Chock

Non-Powered Roof Vent

2,500 lb. D-Rings

5,000 lb. D-Rings

Roof Ladder Rack

E-Track Sidewall

Chrome V-Nose

6-Inches Extra Height

Spare Tire (V-Front)

500 lb. Wall Rope Ring

Air Conditioner
